Specification
| HARDWARE FEATURES | |
|---|---|

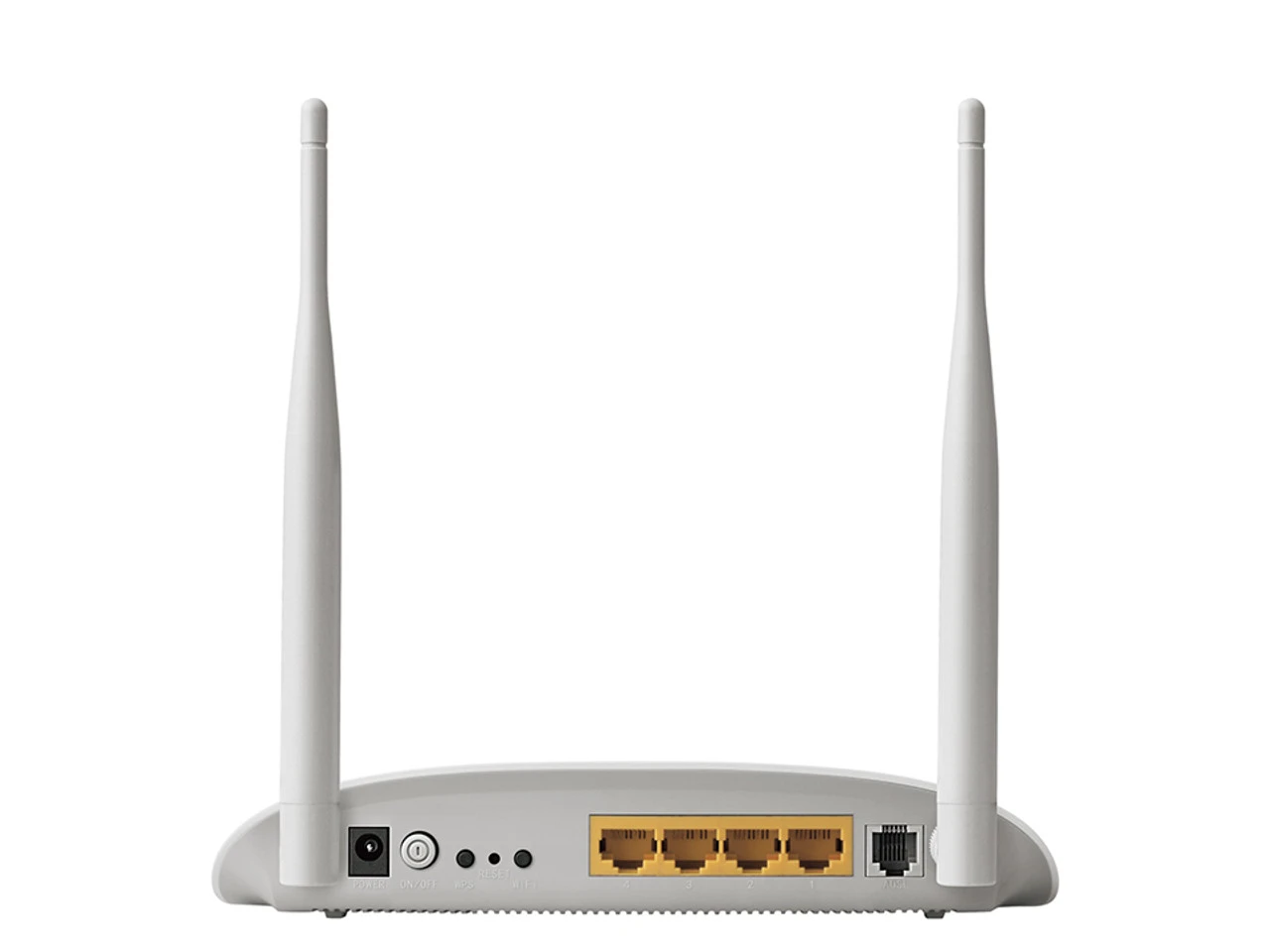

| Interface | 4 10/100Mbps RJ45 Ports 1 RJ11 Port |
| Button | 1 Power On/Off Switch 1 WPS Button 1 Wi-Fi On/Off Button |
| External Power Supply | 9VDC/0.85A |
| IEEE Standards | IEEE 802.3, 802.3u |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 7.7*5.1*1.4 inch ( 195*130*35 mm ) |
| Antenna Type | Omni directional, Detachable, Reverse SMA |
| Antenna Gain | 2x5dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, 802.11g, 802.11b |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
| Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding | Virtual server, DMZ, ACL(Access Control List) |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs, |
| Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

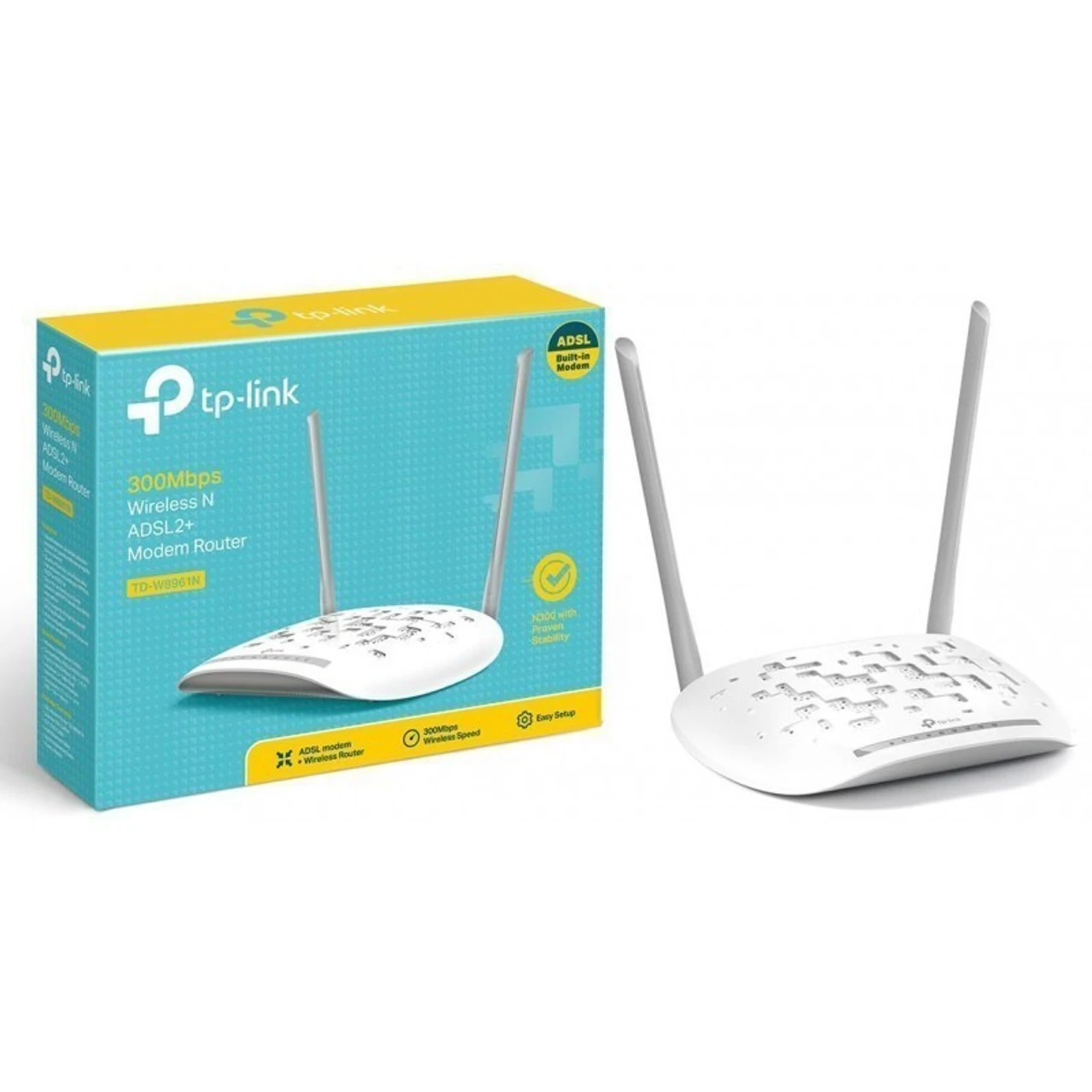

| Package Contents | TD-W8961ND External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux. |
